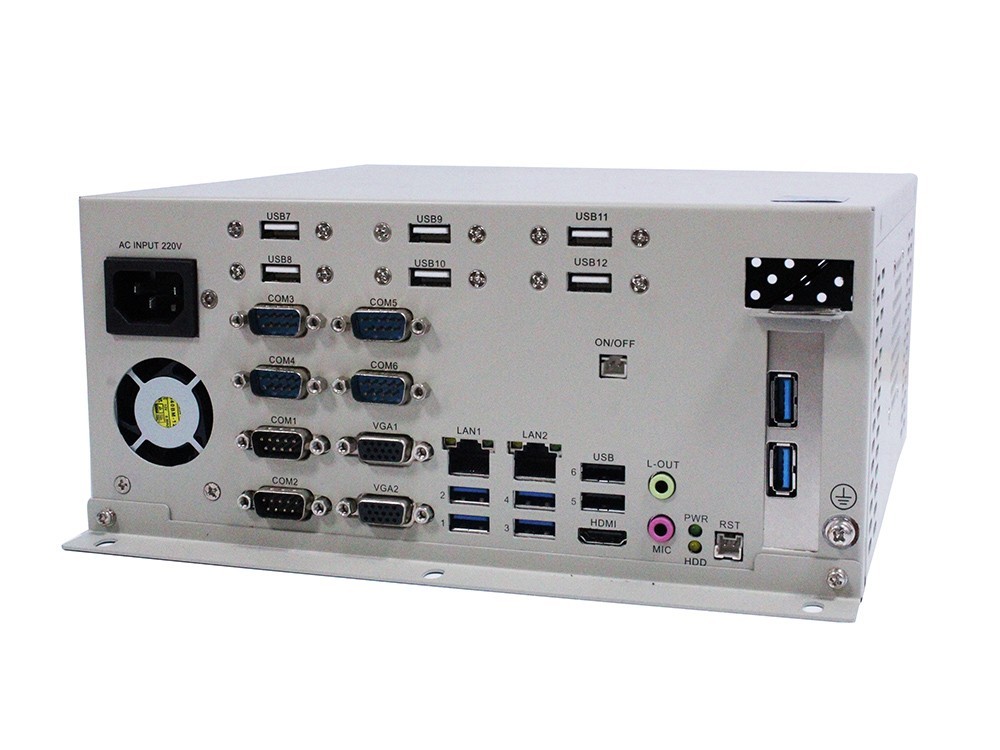

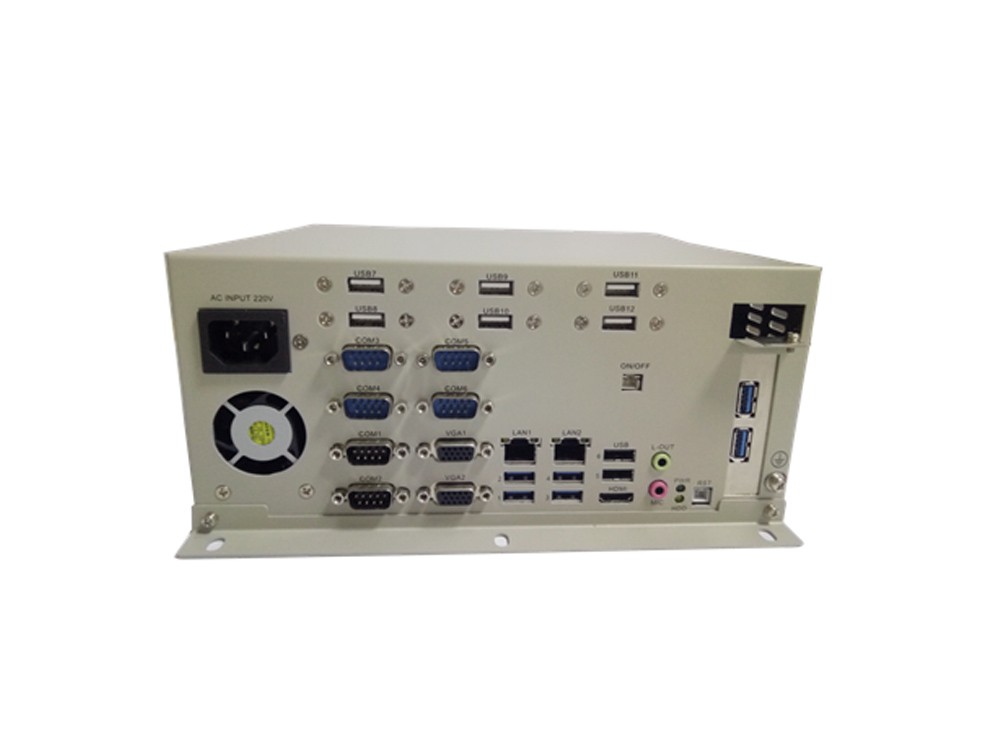

GA-A1601
H110 high performance chipset is adopted
Support INTEL 6 generation, 7 generation CPU
Supports up to 32GB DDR4
Support 2*Realtek RTL8111H gigabit network port
14 * USB support (6 * see + 8 * USB)
Support 6 * COM (RS - 232)
Support 2*SATA3.0, 1* m.2 (SSD)
220 v AC input
-
product details
-
Product specification
Ø Product overview
Ga-a1601 is a built-in 170mmX170mm motherboard embedded high-performance machine, using the latest INTEL 6 generation, 7 generation CPU, can be widely used in ATM&VTM financial self-help industry, material with sheet metal casting and reinforcement, the case structure is compact and reasonable layout, with good dustproof, heat dissipation and anti-resistance performance.
Ø Product features
@ USES H110 high performance chipset
@ Support INTEL 6 and 7 cpus
@ supports up to 32GB DDR4
@ Support 2*Realtek RTL8111H gigabit port
@ 14 * @ support USB (6 * see + 8 * USB)
@ Support 6*COM(rs-232)
@ Support 2*SATA3.0, 1* m.2 (SSD)
@ 220V AC input
Ø Application field
Widely used in ATM&VTM financial self-help industry.
High energy computer GA-A1601 product specifications | |
CPU | Intel 6th and 7th generation Core i7/i5/i3, Pentium, Celeron series processors |
chipset | Intel H110 |
BIOS | AMI |
memory | 2* DIMM , DDR4，Maximum support 32GB of memory (optional) |
show | 2 * VGA；1 * HDMI Double show pattern：VGA+VGA,VGA+HDMI |
storage | 2* SATA3.0(1*3.5 'HDD slot and 1*2.5' HDD slot, optional) 1* M.2(SSD, Key B, optional) |
sound | 1 * 3.5mm Audio socket(Line out, Mic in), Realtek ALC662 |
network interface | 2 * RJ45 Port(Realtek RTL8111H gigabit network card) |
Other interfaces
| 6* USB3.0(4*USB3.0+PCIE to 2*USB3.0 ) 8* USB 2.0 |
6 * COM(RS-232) | |
1* 1x2PIN switch pin seat 1* 1x2PIN reset pin socket 1* WIFI module (M.2 Key E, optional) 1* 4G module (optional, one of two interfaces with m. 2(SSD)) | |
power supply | 1*220V AC input |
system software | WIN10/Linux |
The whole machine size | 244*240*110mm (length * width * height) |
Ambient temperature | -10 ~ 50 ℃ |
