Product Brief

GA-A3502

  • It adopts feiteng 1500 quad-core CPU, and the maximum power consumption of the CPU itself is only 15W

  • With domestic galactic kylin system

  • Support VGA, DVI 2 - way display output

  • Support 10 COM, 10 USB (including 6 channels USB3.0)

  • 2 RJ45 1000M network ports

  • Support 3 SATA3.0, 1 m. 2(SSD)

  • Use 1U standard ATX power supply

  • 1 channel PCIE 16X expansion tank



  • product details
  • Product specification

Ø Product overview

Ga-a3502 adopts feitang 1500 quad-core CPU and galactic kirin system. The core technology of hardware and software system is made in China and is safe and controllable. Built-in 1 DDR3 so-dimm memory slot, support up to 1600MHz DDR3 memory, capacity up to 8GB. Support 2-way independent display (VGA +DVI).


Ø Product features

@ adopts feiteng 1500 quad-core CPU, and the maximum power consumption of the CPU itself is only 15W

@ with domestic galactic kylin system

@ Support VGA, DVI 2 way display output

@ Support 10 COM, 10 USB (including 6 channels USB3.0)

@ 2 RJ45 1000M network ports

@ Support 3 SATA3.0, 1 m. 2(SSD)

@ USES 1U standard ATX power supply

@ 1 channel PCIE 16X expansion slot



Ø Application field

Widely used in banking, government and other industries.


CPU

Feiteng 1500 quad-core CPU, TDP 15W

Emory

1* SODIMM,DDR3,Maximum support 8GB(optional)

Storage

3* SATA3.0,  1* M.2(SSD)

Sound card

1 * Line out,  1 * Mic in

Ethernet

2 *Gigabit nics

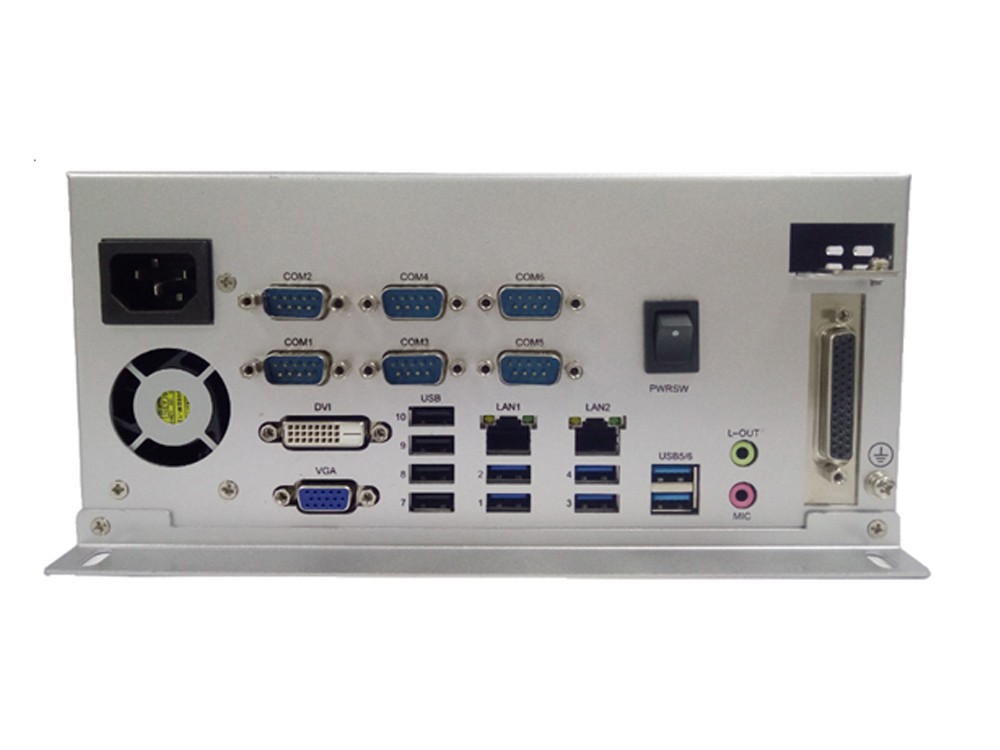

I / O

Interface

Memory

1 * SODIMM DDR3  slot

LAN

2 * RJ45 internet access

USB3.0

6 * USB3.0 Type A interface

USB2.0

4 * USB2.0 Type A interface

VGA

1 * standard DB15 interface VGA

DVI

1 * DVI interface

PCIE

1 * PCIE 16X Expansion slot (4-way serial port extends from this slot)

 Audio

1 * Line out(3.5mm jack)

1 * Mic in (3.5mm jack )

COM

10* RS232 COM (4 serial ports are extended by PCIE slot)

 SATA

2* SATA hard disk bit, 1* m.2 (SSD) slot bit

M.2

M.2 one Key B and one Key E slot respectively

Button

1 * ship type switch

POWER CN

AC100-230V input

System

Galaxy kylin

The whole machine size

270mm(length)X270mm(width)X130mm(height)


Environment

temperature


Working temperature



-10~50 ℃

Storage temperature



-40~70℃
